Product reference: 51541400

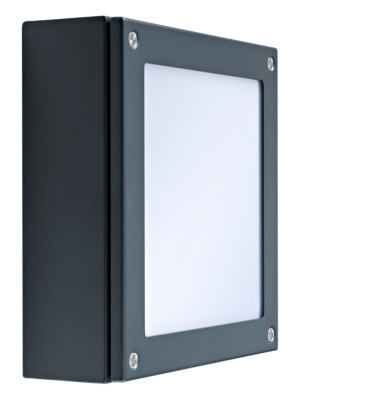

Ceiling / wallmounted luminaire ASL 85 LED anthracite opal diffusor polycarbonate L315mm IK11+/80 j IP65 1500lm 4000K stainless steel vandal-resistant screws no detection
Download everything
main product photo
Presentation Technical specifications Range

ASL 85

Architectural luminaire with flush diffuser, resistant to hypervandalism IK11+ 80J IP65 Square (315x315x85mm), surface-mounted Body and frame in EZ steel with polyester powder coating, opalescent polycarbonate diffuser Vandal-resistant stainless steel screws Origine France Garantie certified

La gamme ASL 85

/media/.renditions/catalog/category/gamme_asl.png

ASL 85

Technical specifications

  • Input voltage range : 220-240 VAC V AC
  • Protection class : 1
  • IP : 65
  • IK : 11+/80j
  • ERP / IGH : 850 °C - 30s
  • Rated ambient operating temperature: -20 / 25
  • CRI : 80-89
  • SDCM : 5
  • Photobiological risk :GR0
  • Technical data

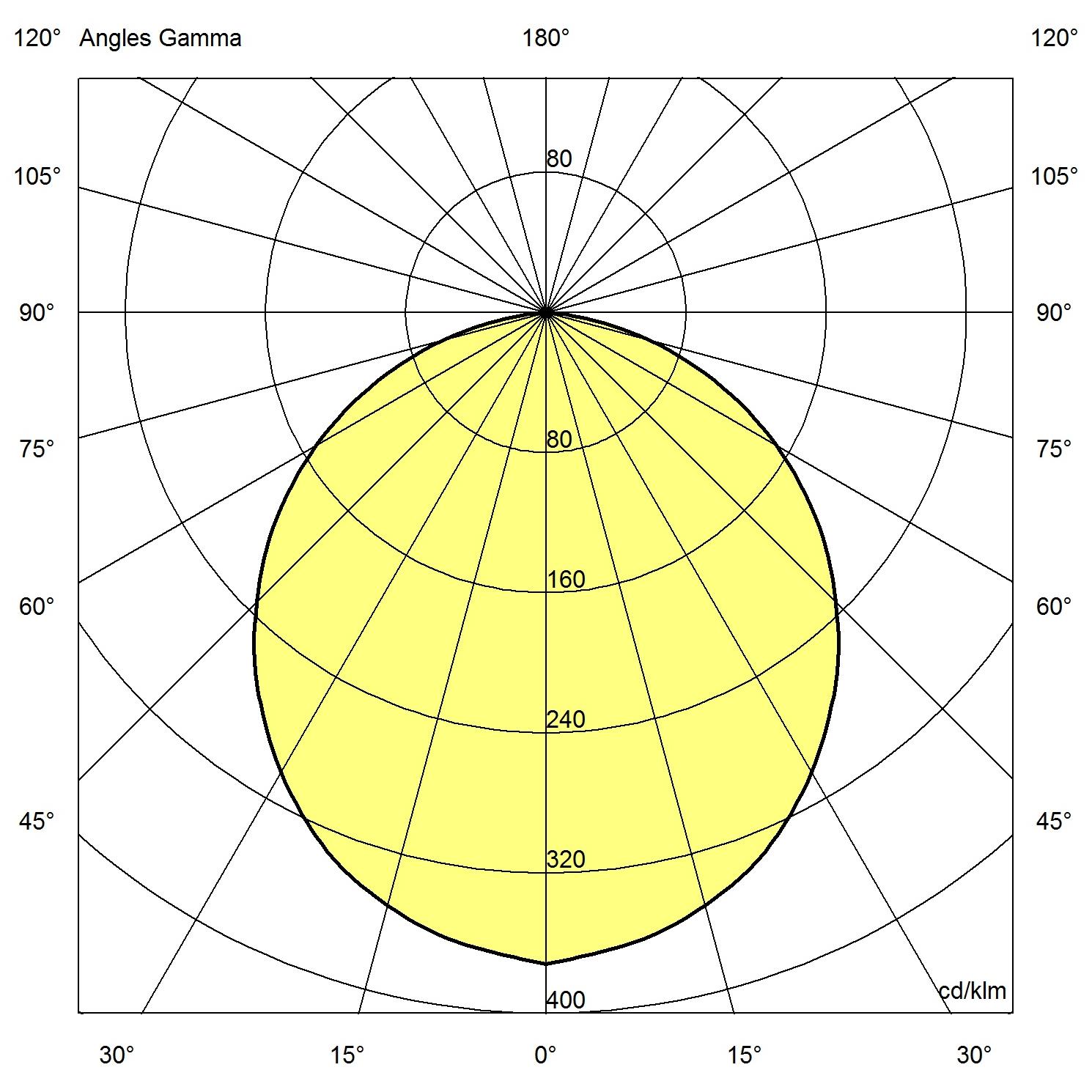

    • https://www.securlite.com/media/sparsh/product_attachment/dt_asl.jpg https://www.securlite.com/media/sparsh/product_attachment/POLAR_51541400.jpg
