Product reference: 16620321
Bulkhead BANG CARRE LED white opal diffusor polycarbonate L308mm IK11/50 j IP55 2050lm 3000K stainless steel vandal-resistant screws DALI dimmable + switch dimming
Download everything
main product photo
Presentation Technical specifications Range

BANG CARRE

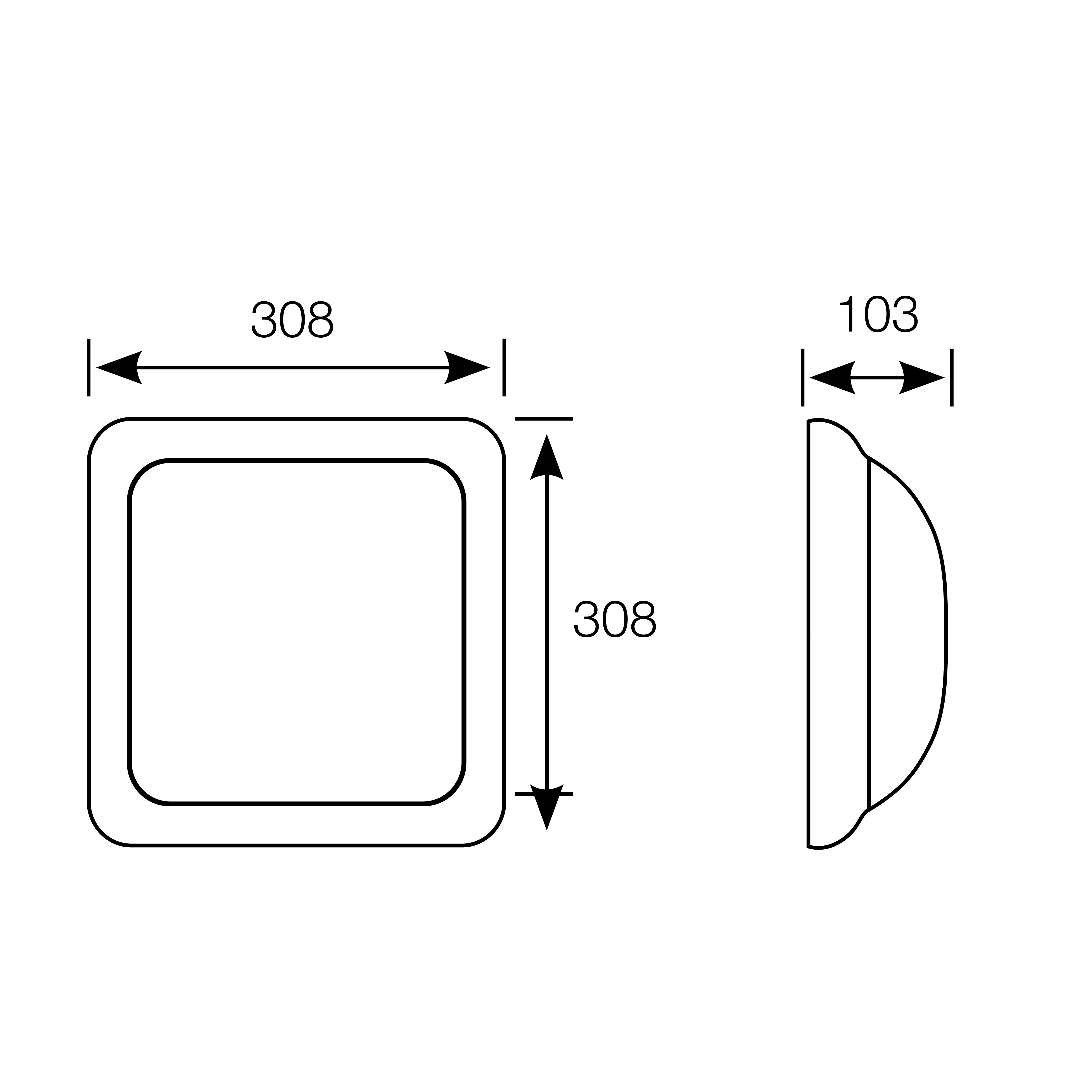

Luminaire resistant to hypervandalism IK11 50J, IP55, low consumption Square bulkhead (308x308x103 mm), reinforced polyamide base, opalescent polycarbonate diffuser Surface or ceiling mounted Vandal-resistant stainless steel screws Origine France Garantie certified

La gamme BANG CARRE

/media/catalog/category/bang_carre_opale_HD.png

BANG CARRE
/media/catalog/category/bang_carre_access_HD.png

BANG CARRE ACCESS

Technical specifications

  • Input voltage range : 220-240 VAC V AC
  • Protection class :2
  • IP : 55
  • IK : 11/50j
  • ERP / IGH : 850 °C - 30s
  • Nominal ambient operating temperature :-20 / 25
  • CRI : 80-89
  • SDCM : 5
  • Photobiological risk :RG0
