Product reference: 61771404
Corner linear TITAN A30 LED anthracite opal diffusor polycarbonate L1330mm IK11++/120 j IP65 6930lm 4000K stainless steel vandal-resistant screws slave version + extinction warning
Download everything
main product photo
Presentation Technical specifications Range

TITAN A30

Steel luminaire designed for premises and pedestrian subways subject to extreme vandalism, IK11++ 120J, IP65 30° angle, body and frame in ZP steel, diffuser braced in opalescent polycarbonate Vandal-resistant stainless steel screws Origine France Garantie certified

La gamme TITAN A30

/media/catalog/category/titan_a30_gris_opale_HD.png

TITAN A30

Technical specifications

  • Input voltage range : 220-240 VAC V AC
  • Protection class : 1
  • IP : 65
  • IK : 11++/120j
  • ERP / IGH : 850 °C - 30s
  • Rated ambient operating temperature: -20 / 35
  • CRI : 80-89
  • SDCM : 5
  • Photobiological risk :GR0
  • Technical data

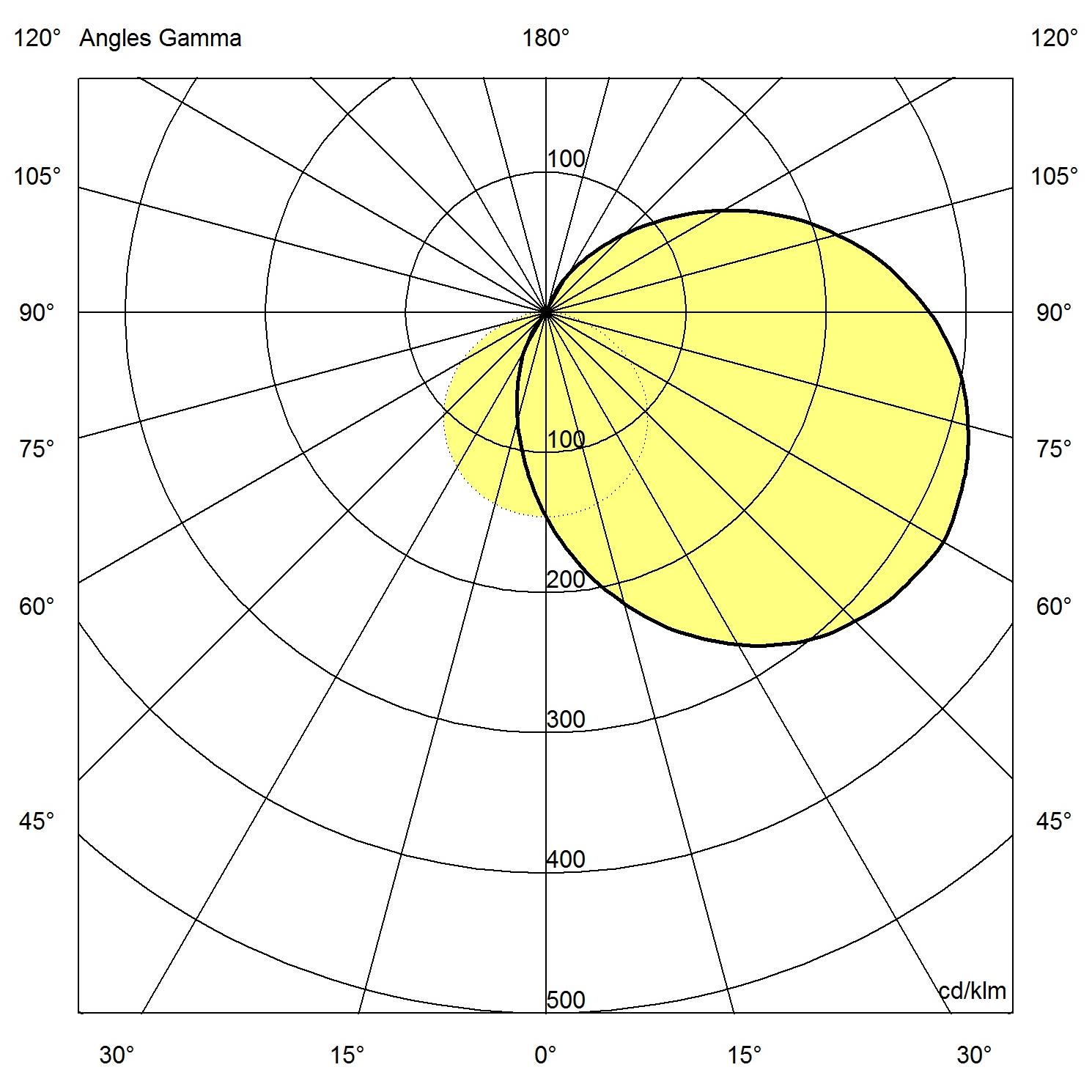

    • https://www.securlite.com/media/sparsh/product_attachment/dt_titan_a30.jpg https://www.securlite.com/media/sparsh/product_attachment/POLAR_61771404.jpg
