Product reference: 30210321
Corner linear SOFFITE LED white opal diffusor polycarbonate L1475mm IK10/20 j IP42 3210lm 3000K DALI dimmable + switch dimming
Download everything
main product photo
Presentation Technical specifications Range

SOFFITE

Corner-mounting luminaire designed to form a line of light IK10 20J, IP42, secure opening system with dedicated tool Body and end caps in white lacquered aluminium, opalescent polycarbonate diffuser Lengths from 615 to 1475mm Origine France Garantie certified

La gamme SOFFITE

/media/catalog/category/gamme_soffite.png

SOFFITE

Technical specifications

  • Input voltage range : 198-264 VAC V AC
  • Protection class : 1
  • IP : 42
  • IK : 10/20j
  • ERP / IGH : 850 °C - 30s
  • Rated ambient operating temperature: -20 / 25
  • CRI : 80-89
  • SDCM : 5
  • Photobiological risk :GR0
  • Technical data

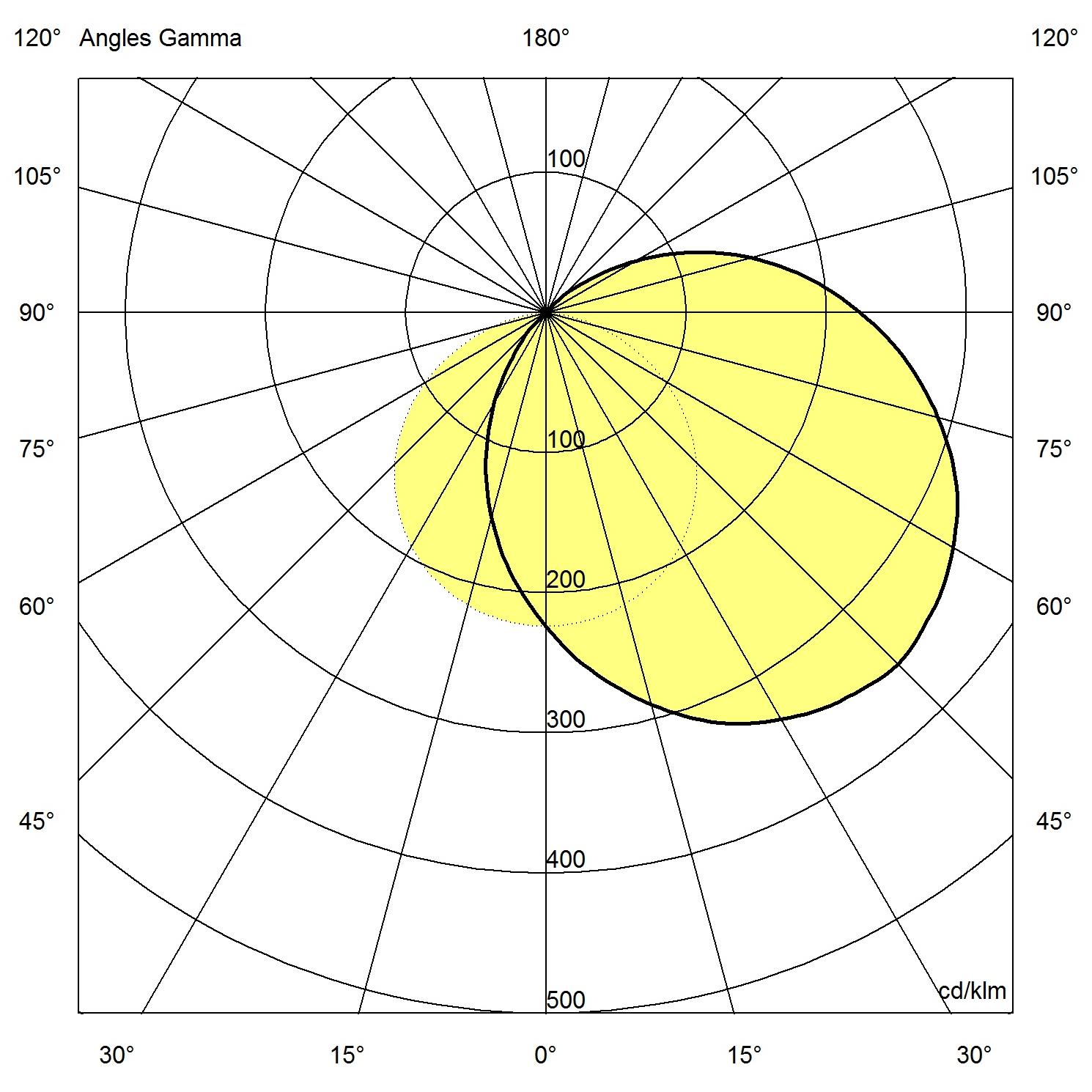

    • https://www.securlite.com/media/sparsh/product_attachment/dt_soffite.jpg https://www.securlite.com/media/sparsh/product_attachment/POLAR_30210321.jpg
