Product reference: 64111300

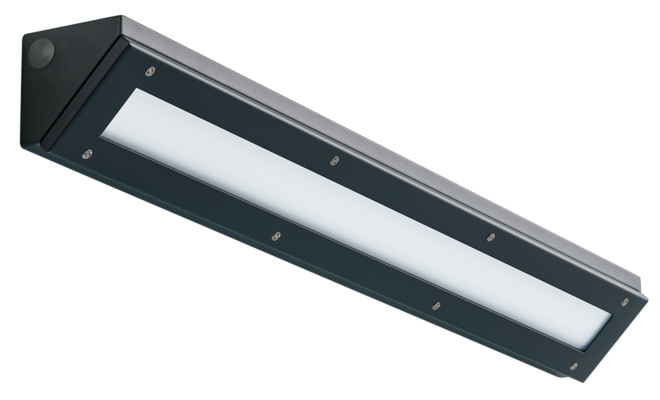

Corner linear TITAN COMPACT ANGLE LED anthracite opal diffusor polycarbonate L375mm IK11+/80 j IP65 750lm 3000K stainless steel vandal-resistant screws no detection
Download everything
main product photo
Presentation Technical specifications Range

TITAN COMPACT

Extremely compact architectural luminaire with high vandal resistance, IK11+ 80J, IP65 Body and frame in EZ steel Corner mounting version: body and frame in ZP steel Flat opalescent polycarbonate diffuser Vandal-resistant stainless steel screws Origine France Garantie certified

La gamme TITAN COMPACT

/media/catalog/category/titan_compact_applique_HD.png

TITAN COMPACT
/media/catalog/category/gamme_titan_compact.png

TITAN COMPACT APPLIQUE
/media/catalog/category/titan_compact_angle_HD.png

TITAN COMPACT ANGLE
/media/catalog/category/titan_compact_e_HD.png

TITAN COMPACT E

Technical specifications

  • Input voltage range : 220-240 VAC V AC
  • Protection class : 1
  • IP : 65
  • IK : 11+/80j
  • ERP / IGH : 850 °C - 30s
  • Rated ambient operating temperature: -20 / 35
  • CRI : 80-89
  • SDCM : 5
  • Photobiological risk :GR0
  • Technical data

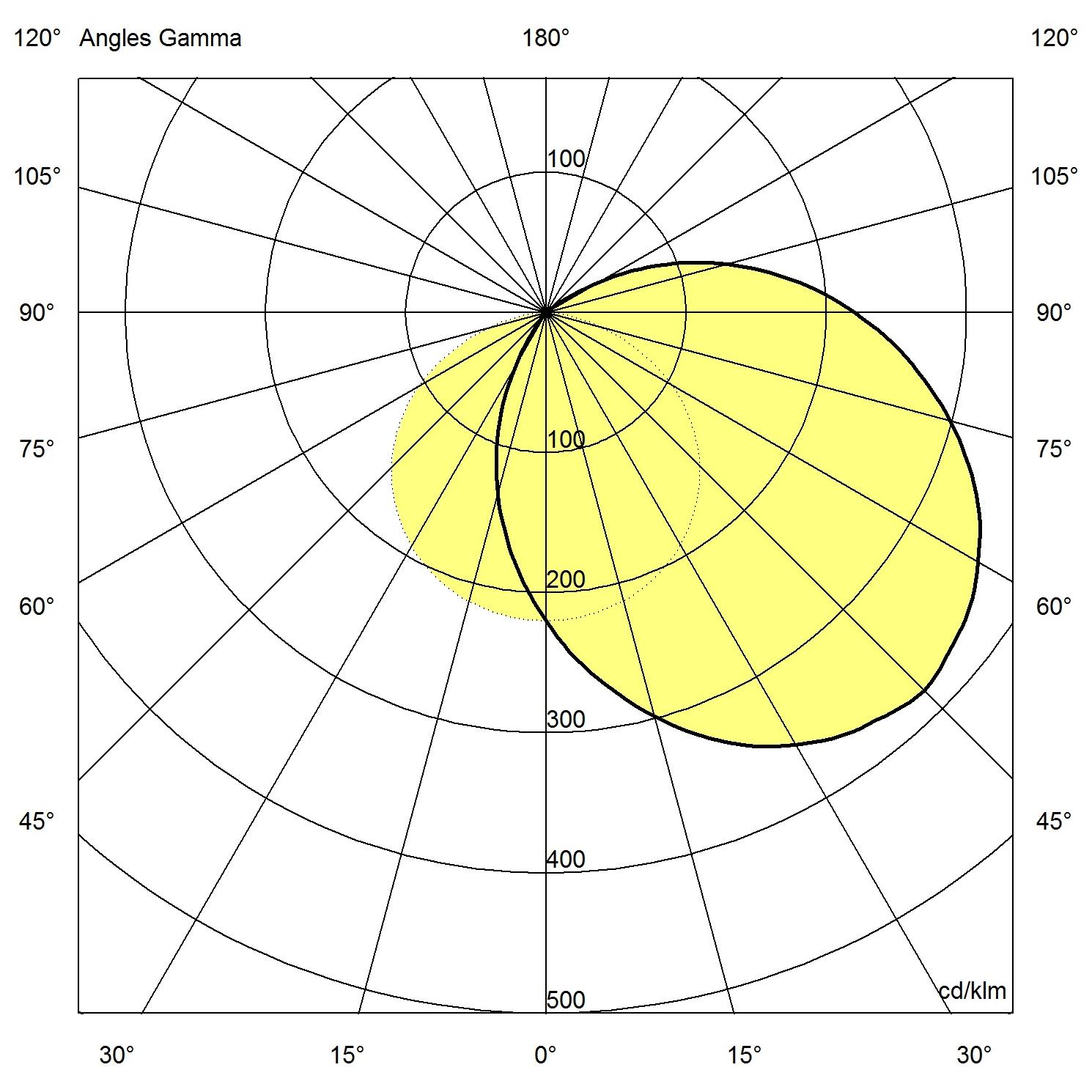

    • https://www.securlite.com/media/sparsh/product_attachment/dt_titan_compact.jpg https://www.securlite.com/media/sparsh/product_attachment/POLAR_64111300.jpg
