Product reference: 66339421
Corner linear URBALINE ANGLE LED aluminium opal diffusor polycarbonate L1210mm IK11++/150 j IP65 4150lm 4000K stainless steel vandal-resistant screws DALI dimmable + switch dimming
Download everything

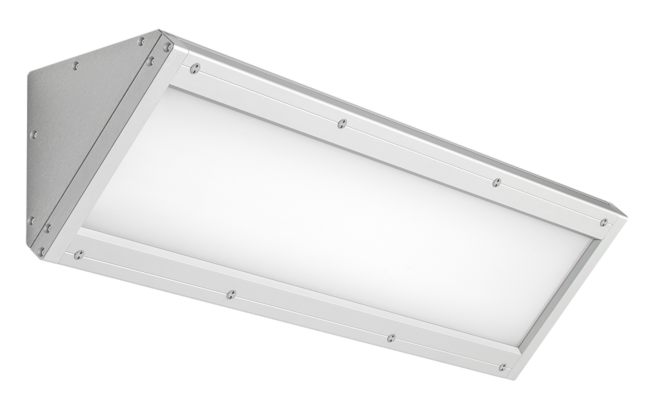

main product photo
Presentation Technical specifications Range

URBALINE

Elegant luminaire designed to withstand marine corrosion and extreme vandalism in public spaces and railway premises Up to IK11++ 150J, IP65 Lengths from 370 to 1210 mm Corner mounting Recyclable, upgradeable Vandal-resistant stainless steel screws Origine France Garantie certified

La gamme URBALINE

/media/catalog/category/urbaline_50j.png

URBALINE
/media/catalog/category/urbaline_angle.png

URBALINE ANGLE

Technical specifications

  • Input voltage range : 220-240 VAC V AC
  • Protection class : 1
  • IP : 65
  • IK : 11++/150j
  • ERP / IGH : 850 °C - 30s
  • Rated ambient operating temperature: -20 / 35
  • CRI : 80-89
  • SDCM : 5
  • Photobiological risk :GR0
  • Technical data

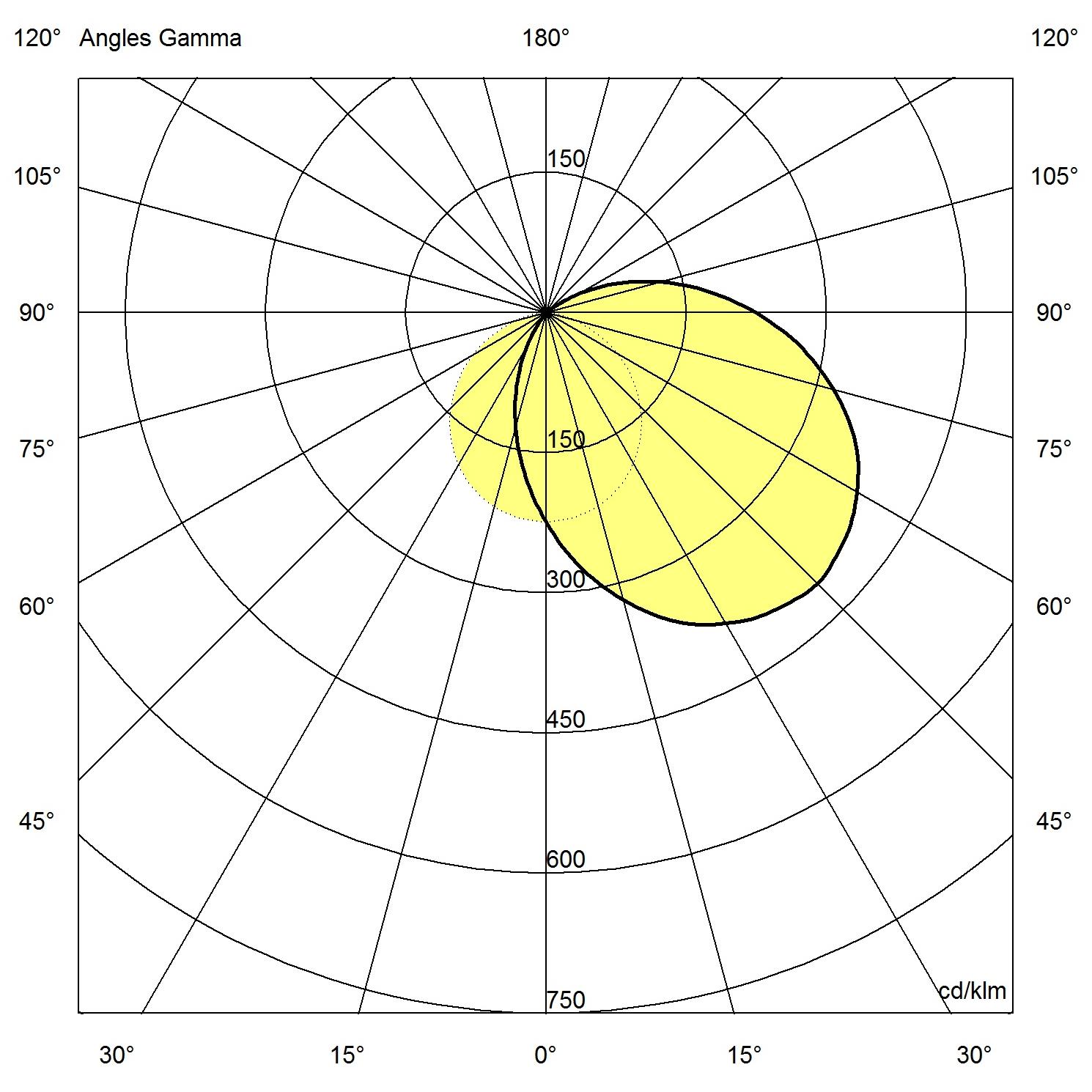

    • https://www.securlite.com/media/sparsh/product_attachment/dt_urbaline.jpg https://www.securlite.com/media/sparsh/product_attachment/POLAR_66339421.jpg
