Product reference: 107604009702
Bulkhead VOILA ACCESS ASYM LED white opal diffusor polycarbonate Ø340mm IK10/20 j IP55 2114lm 4000K stainless steel crosspoint screws no detection stainless steel crosspoint screws
Download everything

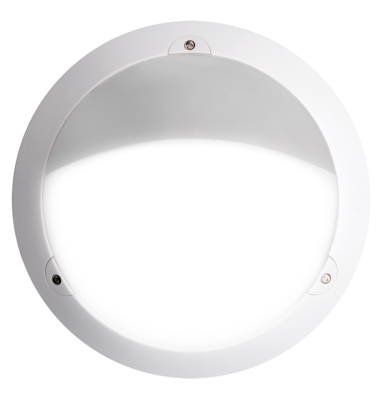

main product photo
Technical specifications Range

Technical specifications

  • Input voltage range : 198-264 VAC V AC
  • Protection class : 2
  • IP : 55
  • IK : 10/20j
  • ERP / IGH : 850 °C - 30s
  • Rated ambient operating temperature: -20 / 25
  • CRI : 80-89
  • SDCM : 7
  • Photobiological risk :GR0
  • Technical data

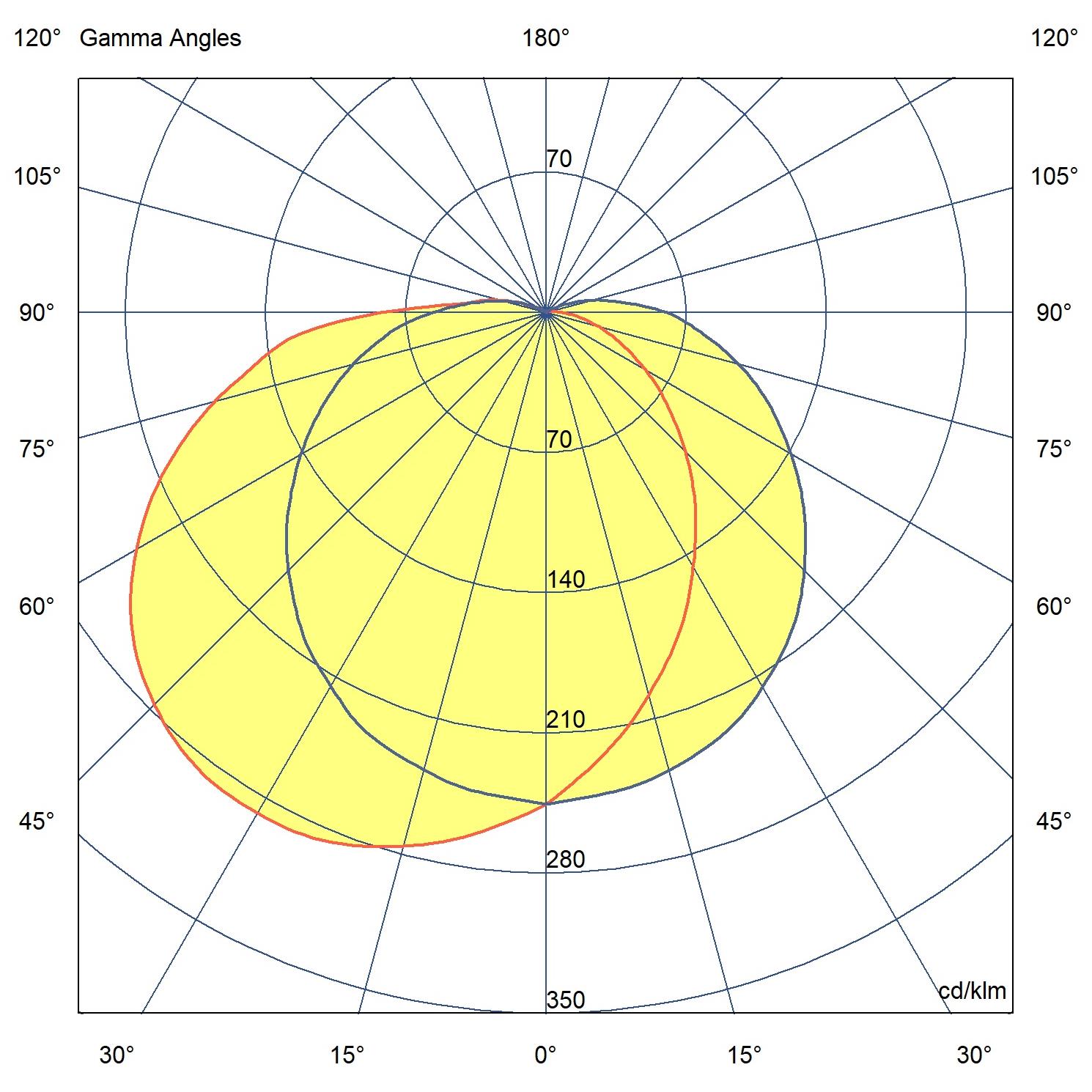

    • https://www.securlite.com/media/sparsh/product_attachment/dt_voila_access_asymetrique.jpg https://www.securlite.com/media/sparsh/product_attachment/POLAR_107604009702.jpg
